Old 05-23-2005, 02:12 PM   #81
mikystyle
Registered User

mikystyle's Avatar

Join Date: Apr 2005
Location: New Hampshire
Send a message via AIM to mikystyle
why cant i just take the npt female adapter and hook it directly up to a larger tank and fill my hpa tank. why do i need a regulator, bled vavle and all that other stuff. the large tanks psi is a maximum of 2600psi.
mikystyle is offline   Reply With Quote
Old 06-25-2005, 06:52 PM   #82
baish
Registered User

Join Date: Jun 2005
Location: tip of the mit
i was wondering, when you go to a scuba place to get your tank filled, do they put in compressed air like at a pro shop, or is it different? will it get dirt in the noid? i was also wondering if it were possible to get the subas filled at a local pball shop?
baish is offline   Reply With Quote
Old 06-26-2005, 07:10 AM   #83
Uziel Gal
Legend

Join Date: Mar 2003
Location: Chingford, London, UK
Diving shops often have a compressor to fill your tank, whereas pball pro shops often use a fill rig connected to a number of compressed air cylinders (basically the same as you filling from a scuba tank, but on a larger scale) - they only have a finite supply of compressed air, where a compressor gives you an unlimited source of compressed air. Some pro shops also have a booster pump in order to charge up to 4500psi. Boosters aren't common at diving shops (that I have seen) - they either have a 4500psi capable compressor or they don't.

If anything, air from a diving shop will be cleaner, as it has to be breathing quality air, so it shouldn't be dirty.

A paintball shop *could* fill a scuba tank, but it would take a big hit out of one of their cylinders - they are really set up to fill a smaller air system bottle. Most of them would expect you to get your scuba tank filled at a diving shop with a compressor.
__________________
It's just like a battle zone, you got a bottle and you're on your own.
Gotta be a Scotch or a Kamikaze, none of those other weapons will faze me.

Hundred, hundred, hundred bottles on the wall, you wonder if you can drink them all.
Got to go home by 1am, the bottle wins the battle again.
Husker Du - "First of the last calls"
Back when I was popular
Supporting a friend:
HustlePaintball.com for Spyder paintball guns, Dye Markers, WDP Angel 1 and of course the Hustle Hotties.
Uziel Gal is offline   Reply With Quote
Old 06-26-2005, 07:59 AM   #84
baish
Registered User

Join Date: Jun 2005
Location: tip of the mit
Smile

thanks a bunch
baish is offline   Reply With Quote
Old 06-26-2005, 10:14 AM   #85
BourneKiller
Registered User

BourneKiller's Avatar

Join Date: Jul 2002
Location: Portland
Quote:
Originally posted by Uziel Gal
A paintball shop *could* fill a scuba tank, but it would take a big hit out of one of their cylinders - they are really set up to fill a smaller air system bottle. Most of them would expect you to get your scuba tank filled at a diving shop with a compressor.
And the dive shop would charge much less to fill your scuba tank than the local paintball shop would.
__________________
Hustle Paintball has Spyder Paintball Markers and Ion Paintball Markers.
Hustle Paintball has the brand new Angel 1 paintball gun in stock.
Spyder Paintball Gun at HustlePaintball.com
Looking for a new paintball marker? Click Here! Looking for the 2007 Proto Matrix VII? Hustle Paintball has them!
BourneKiller is offline   Reply With Quote
Old 08-01-2005, 09:06 AM   #86
skip39

Join Date: Nov 2004
Location: Winnipeg
ok this is my question

I am probably going to be running a private field for teams to practice on. I need to purchase some scuba tanks. Now there will probably be about 10-12 people playing on the weekend (Friday-Sunday). I was thinking about getting 2 tanks. How many times would i have to fill these tanks over that weekend period? Also if i want to do that cascading thing do i need to fill stations?
__________________
,Kyle.H

pe@ce
skip39 is offline   Reply With Quote
Old 08-01-2005, 10:02 AM   #87
Uziel Gal
Legend

Join Date: Mar 2003
Location: Chingford, London, UK
That is a very hard question to answer, as it would depend on a number of variables - the capacity and fill pressure of the scuba tanks, the capacity and fill pressure of the bottles being filled, the efficiency of the markers being used, the number of shots being fired per game, how many games in a day etc.

An easier question to answer is that regarding the fill station. It would be possible to function with just one fill station, but you would need to keep switching it between the bottles, so for speed and convenience, it would be better to two fill stations.
__________________
It's just like a battle zone, you got a bottle and you're on your own.
Gotta be a Scotch or a Kamikaze, none of those other weapons will faze me.

Hundred, hundred, hundred bottles on the wall, you wonder if you can drink them all.
Got to go home by 1am, the bottle wins the battle again.
Husker Du - "First of the last calls"
Back when I was popular
Supporting a friend:
HustlePaintball.com for Spyder paintball guns, Dye Markers, WDP Angel 1 and of course the Hustle Hotties.
Uziel Gal is offline   Reply With Quote
Old 09-11-2005, 05:25 PM   #88
vlrules
:dodgyballer:

vlrules's Avatar

Join Date: Feb 2004
Location: Coronation, Alberta, CANADA!
I know this is an old thread, but I'm planning on getting a scuba fill unit and a compressed air tank for my 'Cocker. How many shots could I get off of a 68 ci tank on average, and from what I've read so far, its best to get 2 3000 psi scuba tank and cascade? Would that get me up to 4500, or just 3000? I would think only 3000, but I'm just wondering. And if its only 2 guys filling off of the set up, and shooting maybe a case a week between the two of us, how long would this setup last for giving fills? And one last question, can a fire department fill a scuba tank? And I'm in Alberta, so a dive shop may be slightly hard to find. Thanks.
__________________
KILLING FOR BADLANDS
I REJECT YOUR REALITY AND SUBSTITUTE MY OWN!
Guns n' Gear
Jungle Fighter
vlrules is offline   Reply With Quote
Old 09-11-2005, 10:42 PM   #89
Uziel Gal
Legend

Join Date: Mar 2003
Location: Chingford, London, UK
The very vague rule of thumb is that a 3000psi charge will give 10 shots per cubic inch of tank volume, while a 4500psi charge will give 15 shots per cubic inch. This would suggest that a 68ci tank charged to 3000psi would give 680 shots.

However, Autocockers are generally more efficient than this rule of thumb allows for, and with some tuning (sweet spot your regulator pressure, and use a spring kit to set the valve dwell), you should be able to get 1000 shots or so.

If you are using a 3000psi scuba tank, you can only fill your bottle to 3000psi, even if you have a couple of tanks. Each fill of your tank will be at a lower pressure than the last, as each time you tank air out of the scuba tank, the pressure drops. This is where the second tank comes in. It is just used to "top off" your air system to get you closer to 3000psi. This means that the pressure in the second tank drops off more slowly, as you are taking less air out of it.
__________________
It's just like a battle zone, you got a bottle and you're on your own.
Gotta be a Scotch or a Kamikaze, none of those other weapons will faze me.

Hundred, hundred, hundred bottles on the wall, you wonder if you can drink them all.
Got to go home by 1am, the bottle wins the battle again.
Husker Du - "First of the last calls"
Back when I was popular
Supporting a friend:
HustlePaintball.com for Spyder paintball guns, Dye Markers, WDP Angel 1 and of course the Hustle Hotties.
Uziel Gal is offline   Reply With Quote
Old 11-08-2005, 07:01 PM   #90
ruconfused3
Registered User

Join Date: Sep 2004
Location: Miami
Send a message via AIM to ruconfused3
If I already have the tanks how much will it most likely cost to get all the other equipment.
__________________
Custom Karnivor with e2 blade, red and titanium
http://www.pbreview.com/forums/showt...82#post3198682
ruconfused3 is offline   Reply With Quote
Old 11-08-2005, 10:43 PM   #91
Uziel Gal
Legend

Join Date: Mar 2003
Location: Chingford, London, UK

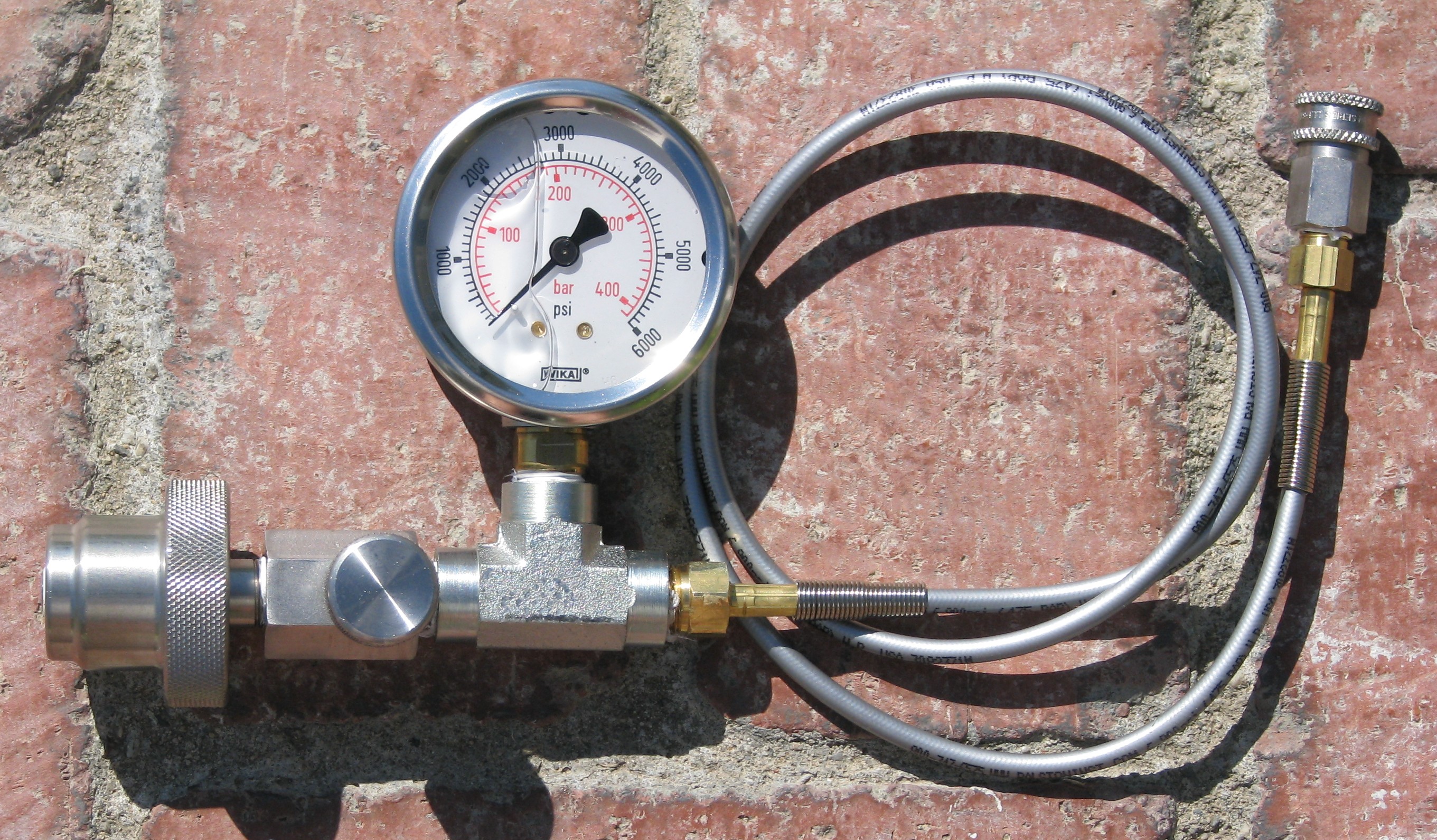

You would need a suitable fill station, depending on the valve your scuba tank is fitted with: -


A Clamp

http://www.planeteclipse.co.uk/site/....asp?prodID=17


DIN fitting - 4500psi

http://www.planeteclipse.co.uk/site/....asp?prodID=28

The links have converted the $US prices back to GB pounds for some reason..... They are $76.50 each.
__________________
It's just like a battle zone, you got a bottle and you're on your own.
Gotta be a Scotch or a Kamikaze, none of those other weapons will faze me.

Hundred, hundred, hundred bottles on the wall, you wonder if you can drink them all.
Got to go home by 1am, the bottle wins the battle again.
Husker Du - "First of the last calls"
Back when I was popular
Supporting a friend:
HustlePaintball.com for Spyder paintball guns, Dye Markers, WDP Angel 1 and of course the Hustle Hotties.
Uziel Gal is offline   Reply With Quote
Old 01-07-2006, 05:51 PM   #92
skitil
Registered User

Join Date: Nov 2005
Location: Arkansas <---sux
Send a message via Yahoo to skitil
Im thinking about getting a big bulk tank. The tall ones not the small scuba ones. Just wondering wat all i will need to get the psi up to 3000-4500. What fill station. Any thing ill need.
skitil is offline   Reply With Quote
Old 01-08-2006, 12:16 AM   #93
Uziel Gal
Legend

Join Date: Mar 2003
Location: Chingford, London, UK
Basically, the tank itself, and a suitable fill station to fit whatever type of valve the tank is fitted with.

A booster pump would be an option, in order to keep achieving the same air system fill pressure, even as the pressure in the bulk tank dropped.
__________________
It's just like a battle zone, you got a bottle and you're on your own.
Gotta be a Scotch or a Kamikaze, none of those other weapons will faze me.

Hundred, hundred, hundred bottles on the wall, you wonder if you can drink them all.
Got to go home by 1am, the bottle wins the battle again.
Husker Du - "First of the last calls"
Back when I was popular
Supporting a friend:
HustlePaintball.com for Spyder paintball guns, Dye Markers, WDP Angel 1 and of course the Hustle Hotties.
Uziel Gal is offline   Reply With Quote
Old 01-21-2006, 05:47 PM   #94
skitil
Registered User

Join Date: Nov 2005
Location: Arkansas <---sux
Send a message via Yahoo to skitil
Could you give me a link to some fill stations for a bulk tank and to a booster pump because i cant find any.
skitil is offline   Reply With Quote
Old 01-21-2006, 06:43 PM   #95
Uziel Gal
Legend

Join Date: Mar 2003
Location: Chingford, London, UK


3000psi fill station - A clamp fitting



4500psi fill station - DIN fitting

WGP MegaBooster pump
__________________
It's just like a battle zone, you got a bottle and you're on your own.
Gotta be a Scotch or a Kamikaze, none of those other weapons will faze me.

Hundred, hundred, hundred bottles on the wall, you wonder if you can drink them all.
Got to go home by 1am, the bottle wins the battle again.
Husker Du - "First of the last calls"
Back when I was popular
Supporting a friend:
HustlePaintball.com for Spyder paintball guns, Dye Markers, WDP Angel 1 and of course the Hustle Hotties.
Uziel Gal is offline   Reply With Quote
Old 07-10-2006, 06:58 PM   #96
bvr775
Registered User

bvr775's Avatar

Join Date: Jun 2006
Location: groves TX
Quote:
Originally Posted by PBfreak01
Only if you want your pops to kill you...That's akin to asking my dad if I can bleed off some of his acetylene. Pure N2 is expensive. From what I hear it's not an easy gas to obtain, but it is extremely stable.

easy to get. welding shop. bottle cheaper than a good hpa p/b tank. 11bux exchange.
__________________
tastes like glue
bvr775 is offline   Reply With Quote
Old 10-25-2006, 01:12 PM   #97
cliffkujala
Registered User

Join Date: Oct 2006
Location: Phoenix, AZ
Send a message via MSN to cliffkujala Send a message via Skype™ to cliffkujala
Quote:
Originally Posted by bvr775 View Post
easy to get. welding shop. bottle cheaper than a good hpa p/b tank. 11bux exchange.
This is correct. I know I can lease a 4500 psi bottle in Phoenix, AZ for $7.00 a month and 200.00 refundable deposit. It costs about 20.00 to fill it back up.

I'm not sure if my calculations are correct, but this is what I figure could be accomplish with a leased 4500psi Nitrogen cylinder from the welding shop:

Formula = P1 x V1 = P2 x V2
P1 = Source Pressure
V1 = Source Volume
P2 = Equalized Pressure
V2 = Total Volume (Source + Destination)

# P1 V1 P2 V2
1 4500 443 4401 453
2 4401 443 4304 453
3 4304 443 4209 453
4 4209 443 4116 453
5 4116 443 4025 453
6 4025 443 3936 453
7 3936 443 3849 453
8 3849 443 3764 453
9 3764 443 3681 453
10 3681 443 3600 453
11 3600 443 3520 453
12 3520 443 3443 453
13 3443 443 3367 453
14 3367 443 3292 453
15 3292 443 3220 453
16 3220 443 3148 453
17 3148 443 3079 453
18 3079 443 3011 453
19 3011 443 2945 453
20 2945 443 2880 453
21 2880 443 2816 453
22 2816 443 2754 453
23 2754 443 2693 453
24 2693 443 2634 453
25 2634 443 2575 453
26 2575 443 2519 453
27 2519 443 2463 453
28 2463 443 2409 453
29 2409 443 2355 453
30 2355 443 2303 453
31 2303 443 2253 453
32 2253 443 2203 453
33 2203 443 2154 453
34 2154 443 2107 453
35 2107 443 2060 453
36 2060 443 2015 453
37 2015 443 1970 453
38 1970 443 1927 453
39 1927 443 1884 453
40 1884 443 1843 453
41 1843 443 1802 453
42 1802 443 1762 453
43 1762 443 1723 453
44 1723 443 1685 453
45 1685 443 1648 453
46 1648 443 1612 453
47 1612 443 1576 453
48 1576 443 1541 453
49 1541 443 1507 453
50 1507 443 1474 453


Costs Assuming 40 Fills Per 4500psi Cylinder
Refundable Deposit 200.00
Monthly Lease 7.00
Cost to Fill Bottle ~20.00
Cost of Lease/Gas Per Fill 0.675
Difference to PB Shop Fills 2.575
Fill Station ~115
Fills until paid for ~65.6

Although you wouldn't want to go out for a day of paintball with less than 3000 psi in your tank, I think this way is viable because you could bring this tank with you in your truck, and fill throughout the day. Especially good for my buddies and I, because we play in the desert.
__________________
c l i f f . k u j a l a
c l i f f k u j a l a . c o m
cliffkujala is offline   Reply With Quote
Old 02-26-2007, 07:15 PM   #98
the_binary_soul
Innocent Bystander

the_binary_soul's Avatar

Join Date: Sep 2006
Location: London, Ontario
Send a message via AIM to the_binary_soul Send a message via MSN to the_binary_soul Send a message via Yahoo to the_binary_soul
Here is a question ...

can I use basically the same idea on a larger K-bottle?
__________________
Dark Ego 06
ICD Promaster
Halo v35 w/ rip
12" Freak kit
PE 68/4500
the_binary_soul is offline   Reply With Quote
Old 02-20-2011, 06:52 PM   #99
Tech Konnekt
Registered User

Join Date: Feb 2011
Location: Florida
Quote:
Originally Posted by chester View Post
Every Fire Department has a cascade system to fill up their SCBA's...
Not true where I live!
There is a single subcontractor who fills all the Fire Dept. SCBA tanks for the county I reside in.
He is not open to the public.

Quote:
Originally Posted by sck View Post
4500 and 5000psi HPA bottles CAN be filled with a SCUBA tank, however they will only get up to 3000 psi.
Unless you bring a booster into the equation.
I recently purchased a booster from rocket-booster.com

Here's my current set-up -

[#1 SCBA tank] -> [regulator] -> [booster (drive) ] ---> [Paintball HPA bottle]
[#2 SCBA tank] ----------------------> [booster(supply)]

My 4500psi 87cu.ft. carbon-fiber wrapped SCBA tanks are filled for $5.00 each at local scuba shop.
I use the Rocket Booster to fill my paintball tanks to 4500psi (as the scuba shop can only provide 4000psi fills)



For properly-rated interconnections and hoses, be sure to check-out Joe's website

I bought my first SCBA 'fill station' (aka 'SCBA Hose Assembly') from Joe, as well as micro-bore hoses.








Last edited by Tech Konnekt : 02-20-2011 at 06:57 PM.
Tech Konnekt is offline   Reply With Quote
Reply



Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

vB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump


All times are GMT -8. The time now is 07:14 PM.


Powered by vBulletin® Version 3.6.4
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.

Help / FAQ  |  Contact Us  |  About Us  |  Advertising Info  |  Link to Us  |  Privacy Policy  |  Terms of Use
Top

Paintball Review

Copyright © 2000-2007 Hillclimb Media
