My masterpiece is complete!

Hey guys, its been a long time since I've been active on these forums, but I just finished my latest gun and been looking forward to uploading the pictures.

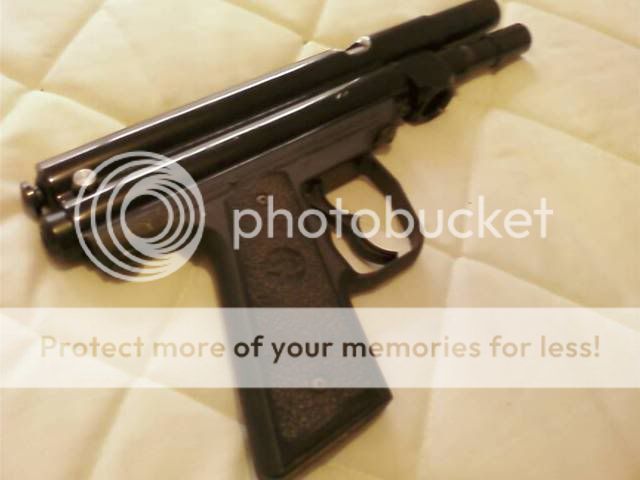

About a year ago I acquired an old Piranha paintball marker that although very basic, I saw that it had potential. My goal was to make an incredibly versatile marker that could be changed from constant air to 12 gram, from hopper to feed tube, from long gun to pistol and have you back on the field in time for the next game. And thus, "Nemo" was born.


Last edited by paintudown : 01-16-2010 at 12:59 PM.
paintudown is offline   Reply With Quote
Old 01-16-2010, 12:33 PM   #2
paintudown
hey look, im famous

paintudown's Avatar

Join Date: May 2005
Location: Houston, Texas
Send a message via AIM to paintudown
To begin the project I first created a stock. Using a broken Car. stock and the handlebar of a razor scooter (don't laugh) I created a piece that would attach it to the body of the marker. To do this I also had to file down the square back of the gun's trigger frame to accept the round pipe attachment.



After doing this I decided that the old welded on diagonal feedneck had to go. Breaking out the old hacksaw I was able to remove the piece and expose the chamber below. At this point there was no turning back so I began to cut and hammer out sheet metal that would be the new attachment piece to hold on the horizontal feed.



Next I removed the fore grip expansion chamber, bottom line, and asa. I then sawed off the stock barrel to match the length of the low pressure chamber and give the marker its "pistol" look.


Last edited by paintudown : 01-16-2010 at 12:59 PM.
paintudown is offline   Reply With Quote
Old 01-16-2010, 12:34 PM   #3
paintudown
hey look, im famous

paintudown's Avatar

Join Date: May 2005
Location: Houston, Texas
Send a message via AIM to paintudown

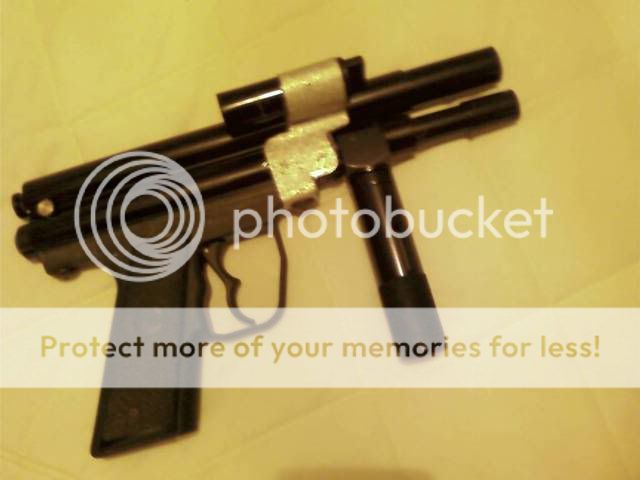

To further void the warranty it was time for the drill press. Since the feed hole was to high up on the gun, I drilled a new one into the side of the marker. (Not pictured sorry). Then using the metal piece I made I attached the original feedneck horizontally to the side of the marker.





The next part was easy. I installed a 12gram port where the expansion chamber had been, doing away with the traditional bulky tank.


Last edited by paintudown : 01-16-2010 at 12:59 PM.
paintudown is offline   Reply With Quote
Old 01-16-2010, 12:41 PM   #4
paintudown
hey look, im famous

paintudown's Avatar

Join Date: May 2005
Location: Houston, Texas
Send a message via AIM to paintudown

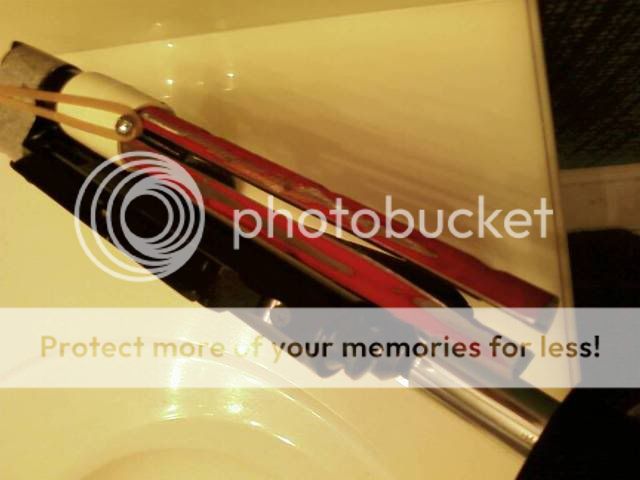

Now this is where things got a little hairy. Using the leg of an old stilt (again, don't laugh), plastic piping couplers, washers nuts and bolts, a rubber band, and a dime (don't ask) I created the horizontal magazine for the marker.



From this angle you can get a general idea how it works. I am still considering switching from this method to a more traditional spring as soon as I can find one that might work.


Last edited by paintudown : 01-16-2010 at 12:59 PM.
paintudown is offline   Reply With Quote
Old 01-16-2010, 12:51 PM   #5
paintudown
hey look, im famous

paintudown's Avatar

Join Date: May 2005
Location: Houston, Texas
Send a message via AIM to paintudown
Finally everything was given a fresh coat of paint and here are a few pictures of the finished product.

If you've made it this far, thanks for reading. All comments are welcome and appreciated.
