The Halfblock Info Thread

The Halfblock Info Thread

Half Block Autococker Thread, Version 2.


All text by MecTurtleCocker…Pictures hunted down by Killertip212 and MecTurtleCocker

What is a half block autococker?

A half block autococker is a modified autococker, which eliminates about 70 grams of aluminum, and gets rid of the cocking rod, and the back block.


How does a half block autococker work?

A half block autococker operates very much like a standard full bodied autococker, except for the mechanism of cocking the hammer. Below is an animation that I made. It demonstrates how the gun functions like a standard autococker, but instead of using a cocking rod, the pull pin slides inside of a slot in the hammer, cocking it back over the sear. When the sear releases, the hammer strikes the valve, just like a regular autococker.
Click here to watch the animation

Where do half block autocockers come from?

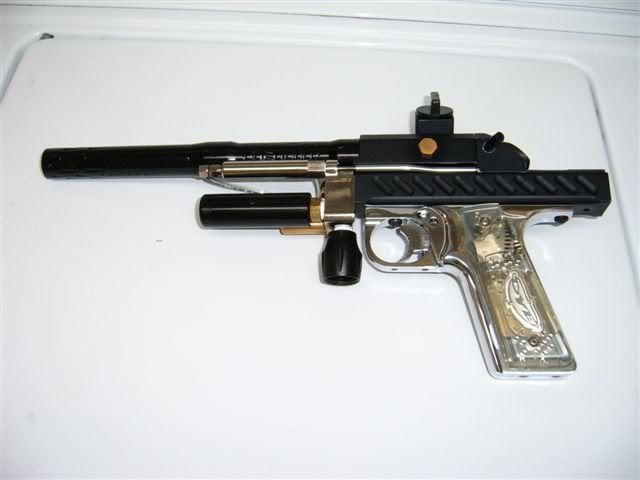

They got their start with the PTP micrococker. These guns, made by Pro Team Products (PTP) had a single trigger slide frame, a foregripless bottom line, a power feed, and a half bocked body. It was a wonderful innovation for autocockers, and it provided a new sleek, compact look. However, it didn’t come without a price. It was a fairly basic cocker with a hacked body that went for an MSRP of $650.

Will half blocking my autococker make it higher performance?

No. Plain and simple. No. Despite claims of half blocks being faster, more efficient etc., a half block will NOT perform better than a full blocked autococker. It will move less when the ram cycles because there is a lower reciprocating mass moving around, but that is about where the half block’s advantages end. Changing a half block’s velocity happens to be easier however, as because of the absence of a cocking rod, the IVG is very easy to access.

If it doesn’t increase performance what does it do?

Well, it makes the whole gun lighter, and tighter. No longer do you have to worry about being tourney legal because you don’t have a beaver tail, or if you are an idiot, worrying about getting smacked by your back block. Also, it gives it a unique, sophisticated, sleek, and refined look. But that last comment is up to you.

What is mid blocking?

Mid blocking is similar to half blocking, yet the bolt is fully encased, unlike a half block, where the bolt is very exposed. In a mid block, the bolt is guided, and held onto the rest of the autococker by the body. In the case of a half block, the bolt is held on by a “sled.” Mid blocks cock the hammer in the same manner as a half block. A good example of a mid block is a Black Magic.


What are the drawbacks of mid blocking and half blocking?

Well, for the cost, there isn’t a whole lot of gain in performance. It’s a bit more of a “I have a unique gun so neah” sort of thing, not “My gun is ultra high perforamce so neah.” Also, because of the pull pin cocking mechanism, there is a slot milled into the valvetrain tube, allowing dirt into the hammer chamber, which may cause a need for more frequent rebuilds.

Can I mQ my half block?

Yes you can. However, the pull pin must be ground down to an appropriate length so that it does not interfere with the mQ valve.

What other custom cuts can be performed on autocockers?

In addition to mid blocking, and half blocking, there are 2 more common cuts. One of them, called a Mini cut eliminates the need for an ASA, and takes a good inch off of the length of the gun sans barrel. The ASA is integrated into the front block. Again, this cut does not increase performance; it just gives your gun a different, and unique look. However, this cut may actually decrease performance, as there is a smaller air chamber, requiring a higher operating pressure. The other common cut, a midget cut eliminates about an inch from the valvetrain tube. This cut must be made in conjunction with a half block cut. This cut makes it so that the back of the gun sits flush with the trigger frame. This makes for a lighter and tighter gun. With all 4 of these cuts in conjunction, the end result is the smallest gun possible..Even smaller than a spool valve, just slightly taller. This image demonstrates 3 cuts. Mini, Mid, and Midget.

Where can I buy a half block body, or get my cocker half blocked?

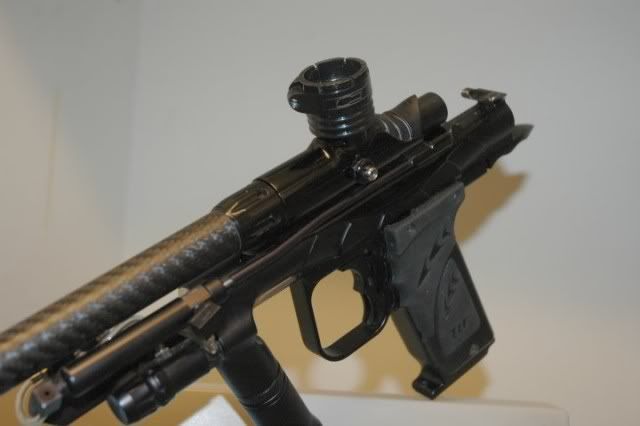

Robin “BlackBean” can convert your current cocker into a half block

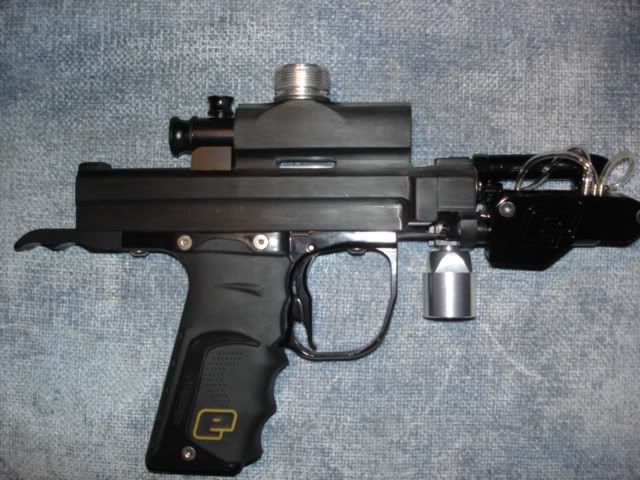

Turtle Innovation is run by Rob Long. They can sell you a half block autococker body, or convert your existing cocker into a “Turtle,” and even sell you a complete, brand new Turtle. Pictured is a Delrin Turtle, a T.I. Exclusive.

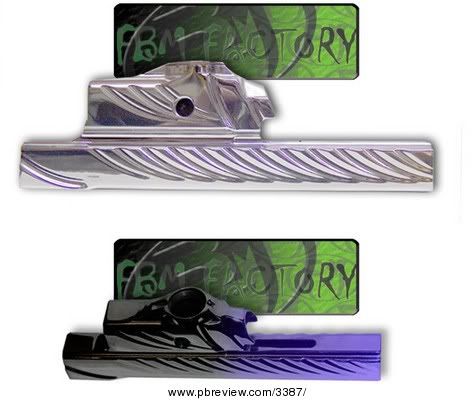

Fireball Mountain can sell you an FBM Half assed body.

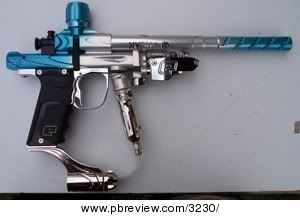

Disruptive Paintball can sell you a Disruptor Pro Cut body, or they can sell you a complete Disruptor Pro Cut autococker

Doc Nickel can sell you a Fastback body.



Racegun makes the Racegun Halfblock. It comes factory with a Race Frame.

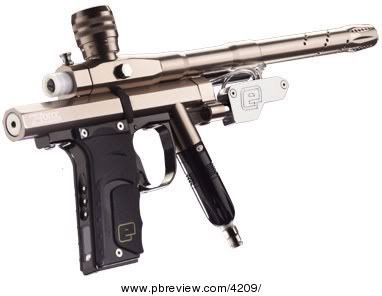

Warped Sportz sells their Z Force Cocker.



Can I make my own half block autococker?

Yes, you can, but I STRONGLY recommend against it. You need a mill, experience and plan. I can’t help you with the first two, but the last, I have you covered for plans. You will also need some parts. These can be found here, at White Wolf Airsmithing The plans are here.

What are some good places to find out more about half block autocockers?

The official Halfcocker website

Please leave the forum open for questions, PM with comments and suggestions



__________________
MS Paintoff OG
f2f4: You rock my socks hon.
Robomonkey: MTC is teh awesome.
Crede777: I stay invisible so I don't get my butt handed to me by Mec.
Evil_Wayz: I heard that watching Mec argue was a beautiful thing to behold, but I didn't believe it til now.
GrimAssasin: wow....mtc does have a way with words. ..
mjr_paranoid: There is a difference between juvenile sniping and annoying with style. You definately attack with style Mech.

Last edited by Uziel Gal : 12-31-2006 at 11:29 AM.
MecTurtleCocker is offline   Reply With Quote
Old 12-31-2006, 11:09 AM   #2
MecTurtleCocker
I want my..I want my MTV

MecTurtleCocker's Avatar

Join Date: Oct 2006
Location: SoCal
Continued...

Can I see a video of a half block in action?

Below are some videos that Uziel Gal provided me with. The demonstrate how a half block works. Note that any autococker will perform this well, provided that quality parts are used.

WGP Black Magic

Black Magic with Predator coded board

Racegun Half-Block

Osiris Orracle Half-Cocker

Fastback with mQ valve

PBX mid-block prototype
__________________
MS Paintoff OG
f2f4: You rock my socks hon.
Robomonkey: MTC is teh awesome.
Crede777: I stay invisible so I don't get my butt handed to me by Mec.
Evil_Wayz: I heard that watching Mec argue was a beautiful thing to behold, but I didn't believe it til now.
GrimAssasin: wow....mtc does have a way with words. ..
mjr_paranoid: There is a difference between juvenile sniping and annoying with style. You definately attack with style Mech.
MecTurtleCocker is offline   Reply With Quote
Old 12-31-2006, 11:38 AM   #3
Uziel Gal
Legend

Join Date: Mar 2003
Location: Chingford, London, UK
Added to the Super FAQ.
__________________
It's just like a battle zone, you got a bottle and you're on your own.
Gotta be a Scotch or a Kamikaze, none of those other weapons will faze me.

Hundred, hundred, hundred bottles on the wall, you wonder if you can drink them all.
Got to go home by 1am, the bottle wins the battle again.
Husker Du - "First of the last calls"
Back when I was popular
Supporting a friend:
HustlePaintball.com for Spyder paintball guns, Dye Markers, WDP Angel 1 and of course the Hustle Hotties.
Uziel Gal is offline   Reply With Quote
Old 01-07-2007, 07:02 PM   #4
tech9
Registered User

tech9's Avatar

Join Date: Jul 2005
Location: s. cali
the Fastback with mQ valve video was sic.... anybody else have more videos? and nice job mec
tech9 is offline   Reply With Quote
Old 01-07-2007, 07:08 PM   #5
MecTurtleCocker
I want my..I want my MTV

MecTurtleCocker's Avatar

Join Date: Oct 2006
Location: SoCal
Those are the best halfblock videos that I know of. I can try to find some more..
__________________
MS Paintoff OG
f2f4: You rock my socks hon.
Robomonkey: MTC is teh awesome.
Crede777: I stay invisible so I don't get my butt handed to me by Mec.
Evil_Wayz: I heard that watching Mec argue was a beautiful thing to behold, but I didn't believe it til now.
GrimAssasin: wow....mtc does have a way with words. ..
mjr_paranoid: There is a difference between juvenile sniping and annoying with style. You definately attack with style Mech.
MecTurtleCocker is offline   Reply With Quote
Old 01-11-2007, 02:49 PM   #6
Ryan314
I love Planet Eclipse.

Ryan314's Avatar

Join Date: May 2001
Location: Maine
Send a message via AIM to Ryan314
You forgot Jarret Custom Machining...

http://www.jarrettcustommachining.com/

This is mine done from Jarret...


__________________
JCM Halfblock... Mini'd and Midgetted

"Train Hard, Play Easy!" -Nexus.
Ryan314 is offline   Reply With Quote
Old 01-27-2007, 03:17 PM   #7
Ryan314
I love Planet Eclipse.

Ryan314's Avatar

Join Date: May 2001
Location: Maine
Send a message via AIM to Ryan314
The latest rendition to my Half Block ... Mini'd, Midgetted.





__________________
JCM Halfblock... Mini'd and Midgetted

"Train Hard, Play Easy!" -Nexus.
Ryan314 is offline   Reply With Quote
Old 01-27-2007, 03:27 PM   #8
Uziel Gal
Legend

Join Date: Mar 2003
Location: Chingford, London, UK
Not the front block you were after, I believe, but very nice anyway.
__________________
It's just like a battle zone, you got a bottle and you're on your own.
Gotta be a Scotch or a Kamikaze, none of those other weapons will faze me.

Hundred, hundred, hundred bottles on the wall, you wonder if you can drink them all.
Got to go home by 1am, the bottle wins the battle again.
Husker Du - "First of the last calls"
Back when I was popular
Supporting a friend:
HustlePaintball.com for Spyder paintball guns, Dye Markers, WDP Angel 1 and of course the Hustle Hotties.
Uziel Gal is offline   Reply With Quote
Old 01-27-2007, 03:31 PM   #9
Ryan314
I love Planet Eclipse.

Ryan314's Avatar

Join Date: May 2001
Location: Maine
Send a message via AIM to Ryan314
Quote:
Originally Posted by Uziel Gal View Post
Not the front block you were after, I believe, but very nice anyway.
Nope Wanted a black one extremely bad, but could not find one anywhere... had to settle for a chrome one... doesn't look all that bad after all. I'll most likely have it stripped and anno'd some time.
__________________
JCM Halfblock... Mini'd and Midgetted

"Train Hard, Play Easy!" -Nexus.
Ryan314 is offline   Reply With Quote
Old 01-27-2007, 05:36 PM   #10
MecTurtleCocker
I want my..I want my MTV

MecTurtleCocker's Avatar

Join Date: Oct 2006
Location: SoCal
Ahh Its So Beautiful!! It Burns!!!
__________________
MS Paintoff OG
f2f4: You rock my socks hon.
Robomonkey: MTC is teh awesome.
Crede777: I stay invisible so I don't get my butt handed to me by Mec.
Evil_Wayz: I heard that watching Mec argue was a beautiful thing to behold, but I didn't believe it til now.
GrimAssasin: wow....mtc does have a way with words. ..
mjr_paranoid: There is a difference between juvenile sniping and annoying with style. You definately attack with style Mech.
MecTurtleCocker is offline   Reply With Quote
Old 01-27-2007, 05:37 PM   #11
Ryan314
I love Planet Eclipse.

Ryan314's Avatar

Join Date: May 2001
Location: Maine
Send a message via AIM to Ryan314
Thanks man.
__________________
JCM Halfblock... Mini'd and Midgetted

"Train Hard, Play Easy!" -Nexus.
Ryan314 is offline   Reply With Quote
Old 02-18-2007, 12:10 AM   #12
leed
Registered User

Join Date: Nov 2005
Well, I know it's a bit late, but so you know, the Catapult Autococker (Green, the first picture) done by Ken C, is not migited. It just has a little snatch grip there, which would make it look like it is. But it is not.

You also might want to mention that the Catapult's that Ken C were the first Midblocks as far as we know. He should have put a patent on them, then he could have sued WGP/K2 for using the design, hahaha.
__________________
well I decided to sig it..
Quote:
Originally Posted by ikey
... as well as be easier on your balls. u can definitely feel a difference when you slide a ball through when tehy are fully screwed in or screwed out a bit.
leed is offline   Reply With Quote
Old 02-18-2007, 01:53 PM   #13
apbrendanw
Fliegend robotertechnisch

apbrendanw's Avatar

Join Date: Feb 2007
Location: Verloren in der Lücke von meinem Gemüt
this is probaly a dumb question,but can you stay mech with a half blocked cocker?at the moment electronics are not in my future,but im considering half blocking.
apbrendanw is offline   Reply With Quote
Old 02-18-2007, 02:19 PM   #14
Uziel Gal
Legend

Join Date: Mar 2003
Location: Chingford, London, UK
Yes, you can. Hence Mec's (mech) name.
__________________
It's just like a battle zone, you got a bottle and you're on your own.
Gotta be a Scotch or a Kamikaze, none of those other weapons will faze me.

Hundred, hundred, hundred bottles on the wall, you wonder if you can drink them all.
Got to go home by 1am, the bottle wins the battle again.
Husker Du - "First of the last calls"
Back when I was popular
Supporting a friend:
HustlePaintball.com for Spyder paintball guns, Dye Markers, WDP Angel 1 and of course the Hustle Hotties.
Uziel Gal is offline   Reply With Quote
Old 02-18-2007, 02:35 PM   #15
apbrendanw
Fliegend robotertechnisch

apbrendanw's Avatar

Join Date: Feb 2007
Location: Verloren in der Lücke von meinem Gemüt
howd i miss that one anyways
apbrendanw is offline   Reply With Quote
Old 02-18-2007, 07:28 PM   #16
MecTurtleCocker
I want my..I want my MTV

MecTurtleCocker's Avatar

Join Date: Oct 2006
Location: SoCal
Quote:
Originally Posted by leed View Post
Well, I know it's a bit late, but so you know, the Catapult Autococker (Green, the first picture) done by Ken C, is not migited. It just has a little snatch grip there, which would make it look like it is. But it is not.

You also might want to mention that the Catapult's that Ken C were the first Midblocks as far as we know. He should have put a patent on them, then he could have sued WGP/K2 for using the design, hahaha.
Thanks for clarifying that.

And to my, and Killertip212's knowledge, the Pro Team Products (PTP) Micrococker was the first autococker to be milled and designed in this fashion.
__________________
MS Paintoff OG
f2f4: You rock my socks hon.
Robomonkey: MTC is teh awesome.
Crede777: I stay invisible so I don't get my butt handed to me by Mec.
Evil_Wayz: I heard that watching Mec argue was a beautiful thing to behold, but I didn't believe it til now.
GrimAssasin: wow....mtc does have a way with words. ..
mjr_paranoid: There is a difference between juvenile sniping and annoying with style. You definately attack with style Mech.
MecTurtleCocker is offline   Reply With Quote
Old 02-18-2007, 10:28 PM   #17
Uziel Gal
Legend

Join Date: Mar 2003
Location: Chingford, London, UK
I think Leed is referring specifically to the mid-block style, not half-cockers as a whole.
__________________
It's just like a battle zone, you got a bottle and you're on your own.
Gotta be a Scotch or a Kamikaze, none of those other weapons will faze me.

Hundred, hundred, hundred bottles on the wall, you wonder if you can drink them all.
Got to go home by 1am, the bottle wins the battle again.
Husker Du - "First of the last calls"
Back when I was popular
Supporting a friend:
HustlePaintball.com for Spyder paintball guns, Dye Markers, WDP Angel 1 and of course the Hustle Hotties.
Uziel Gal is offline   Reply With Quote
Old 09-29-2008, 06:42 PM   #18
Magmoormaster
NUDE Shield thine eyes

Magmoormaster's Avatar

Join Date: Feb 2007
Location: Tucson AZ
I like how the link to disruptivepaintball.com now takes you to the Disruptive Paintball field's website, which is here in Tucson.
__________________
Whatever happens to us as individuals,
some things never die, can never die so long as
we look into our hearts and look at the stars
and truly see... and remember.

Late Knight Productions.
Magmoormaster is offline   Reply With Quote
Reply



Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

vB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump


All times are GMT -8. The time now is 03:26 AM.


Powered by vBulletin® Version 3.6.4
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.

Help / FAQ  |  Contact Us  |  About Us  |  Advertising Info  |  Link to Us  |  Privacy Policy  |  Terms of Use
Top

Paintball Review

Copyright © 2000-2007 Hillclimb Media
